1.4.3. Performance and Usage Diagnosis enabler

1.4.3.1. Introduction

Performance and Usage Diagnosis (PUD) enabler aims at collecting performance metrics from monitored targets by scraping metrics HTTP endpoints on them and highlighting potential problems in the ASSIST-IoT platform, so that it could autonomously act in accordance or to notify to the platform administrator to fine tuning machine resources. For this purpose we use Prometheus, an open-source software that collects metrics from targets by “scraping” metrics HTTP endpoints. Supported “targets” include infrastructure platforms (e.g. Kubernetes), applications, and services (e.g. database management systems). Together with its companion Alertmanager service, Prometheus is a flexible metrics collection and alerting tool.

1.4.3.2. Features

Prometheus is an open-source monitoring framework. It provides out-of-the-box monitoring capabilities for the Kubernetes container orchestration platform. Its main features are:

• Metric Collection: Prometheus uses the pull model to retrieve metrics over HTTP. There is an option to push metrics to Prometheus using Pushgateway for use cases where Prometheus cannot Scrape the metrics.

• Metric Endpoint: The systems that you want to monitor using Prometheus should expose the metrics on an /metrics endpoint. Prometheus uses this endpoint to pull the metrics in regular intervals.

• PromQL: Prometheus comes with PromQL, a very flexible query language that can be used to query the metrics in the Prometheus dashboard. Also, the PromQL query will be used by Prometheus UI and Grafana to visualize metrics.

• Prometheus Exporters: Exporters are libraries which converts existing metric from third-party apps to Prometheus metrics format. There are many official and community Prometheus exporters. One example is, Kube State metrics, a service which talks to Kubernetes API server to get all the details about all the API objects like deployments, pods, daemonsets etc.

• TSDB (time-series database): Prometheus uses TSDB for storing all the data. By default, all the data gets stored locally. However, there are options to integrate remote storage for Prometheus TSDB.

1.4.3.3. Place in architecture

Performance and Usage Diagnosis (PUD) enabler is located in the Application and Service layer of the ASSIST-IoT architecture that provides application logic, including data visualisation and user interaction services, data analytics capabilities, various kinds of data protection support, and data management logic. The PUD enabler is responsible to collect performance metrics from monitored targets.

Here is the high-level architecture of Prometheus.

Prometheus scrapes metrics from instrumented jobs. It stores all scraped samples locally and runs rules over this data to either aggregate and record new time series from existing data or generate alerts.

Prometheus works well for recording any purely numeric time series. It fits both machine-centric monitoring as well as monitoring of highly dynamic service-oriented architectures. In a world of microservices, its support for multi-dimensional data collection and querying is a particular strength.

Prometheus is designed for reliability, to be the system you go to during an outage to allow you to quickly diagnose problems. Each Prometheus server is standalone, not depending on network storage or other remote services. You can rely on it when other parts of your infrastructure are broken, and you do not need to setup extensive infrastructure to use it.

1.4.3.4. User guide

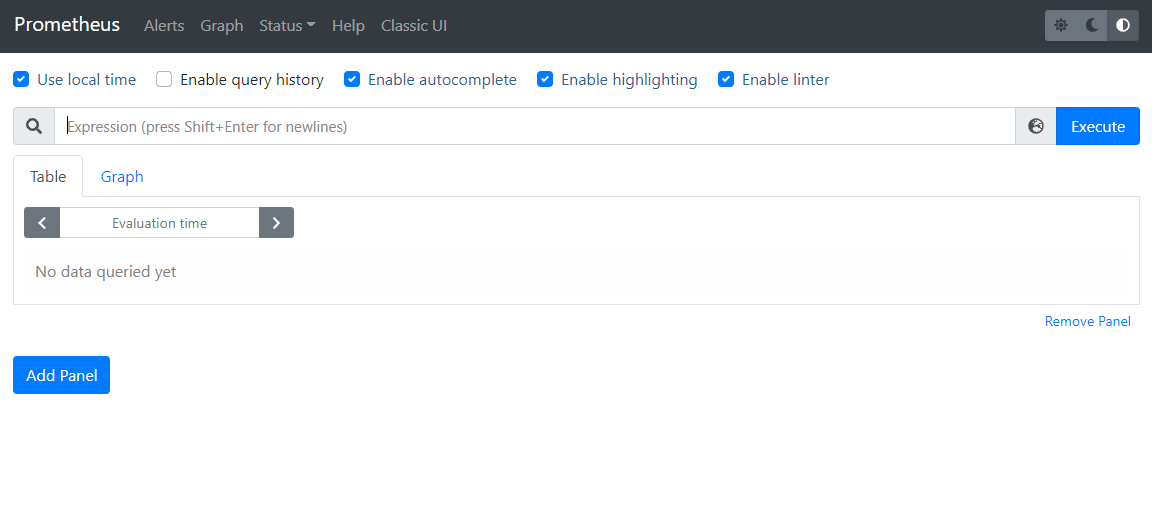

Prometheus provides a web UI for running basic queries located at http://<your_server_IP>:9090/. This is how it looks like in a web browser:

The “Table” tab is used to view the results of a query, while the “Graph” tab is used to create graphs based on a query.

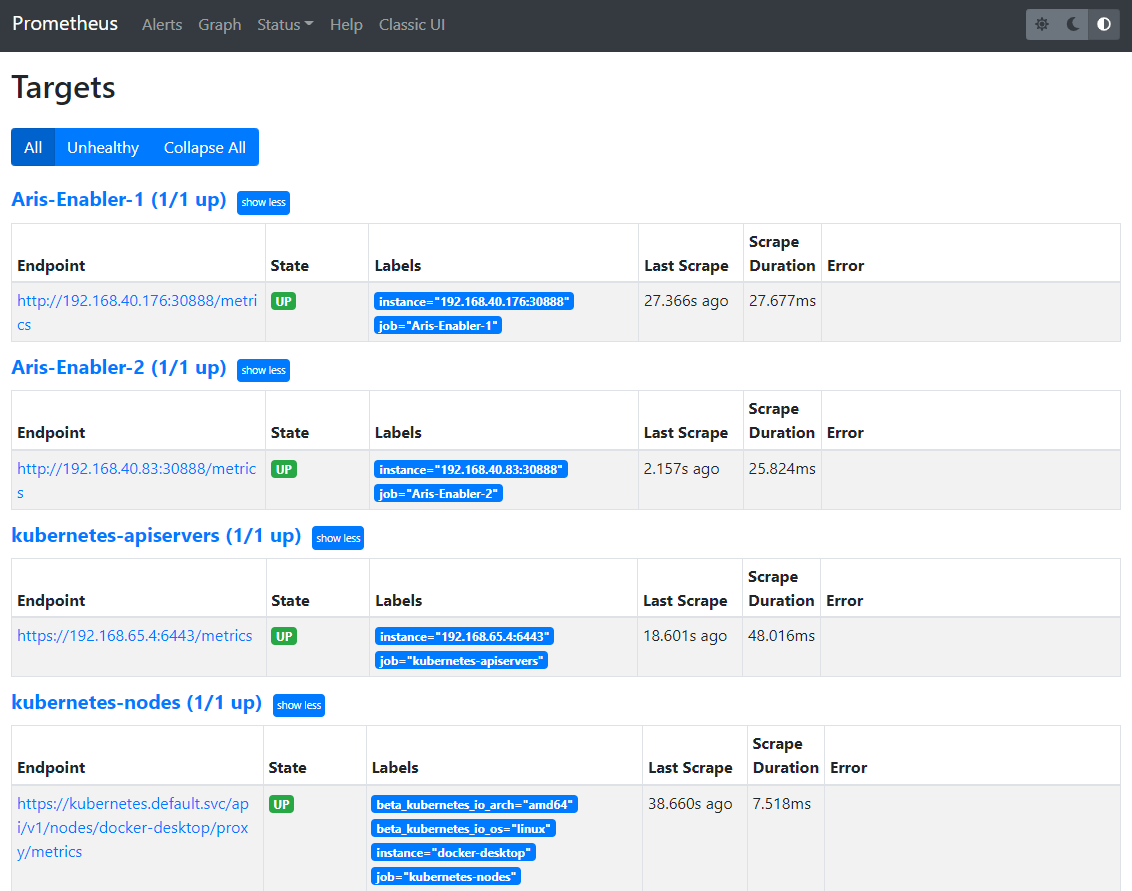

If you want to see a list of metrics sources, go to the Status → Targets page. Here, you will find a list of all services that are being monitored, including the path at which the metrics are available. In this case, the default path /metrics is used.

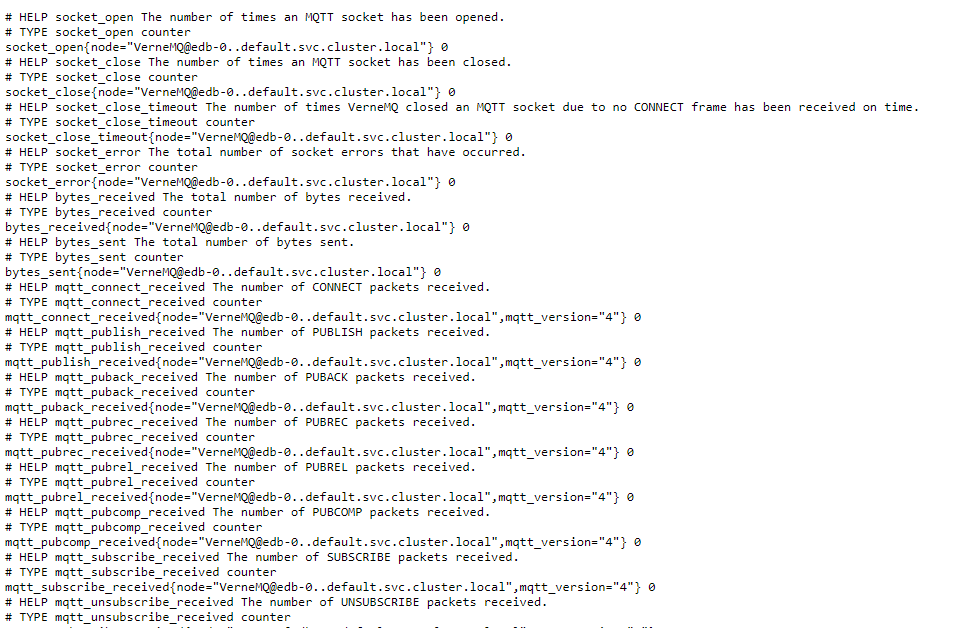

If you’re curious to see how the metrics page looks like, head over to one of them by clicking one of the endpoint URLs.

The Prometheus server collects metrics and stores them in a time series database. Individual metrics are identified with names such as kube_pod_container_resource_requests. A metric may have a number of “labels” attached to it, to distinguish it from other similar sources of metrics. As an example, suppose kube_pod_container_resource_requests refers to the number of requested request resource by a container. It may have a label such as resource, which helps you inspect individual system resources by mentioning them.

In PromQL, an expression or subexpression should always evaluate to one of the following data types:

• Instant vector — It represents a time-varying value at a specific point of time.

• Range vector — it represents a time-varying value, over a period of time.

• Scalar — A simple numeric floating point value.

• String — A string value. String literals can be enclosed between single quotes, double quotes or backticks (`). However, escape sequences like n are only processed when double quotes are used.

For more about Querying please refer to Prometheus’ documentation to get started.

1.4.3.5. Prerequisites

• Kubernetes 1.16+

• Helm 3+

1.4.3.6. Installation

PUD Helm Chart

Helm must be installed to use the charts. Please refer to Helm’s documentation to get started.

• Once Helm is set up properly, add the repo as follows:

  helm repo add --username <<Username>> --password <<Token>> PUD https://gitlab.assist-iot.eu/api/v4/projects/60/packages/helm/stable

To obtain an Access Token:

1. Go to Settings > Access Tokens.

2. Insert a Token name.

3. Insert an Expiration date (Optional).

4. Select api scope.

• Update Helm’s repositories.

  helm repo update

• Install PUD’s Prometheus to your Kubernetes system using the following command:

  helm install PUD/prometheus --name my-release

• Install PUD’s Prometheus-elastic-adapter, Prometheus’ remote storage adapter for Elasticsearch to your Kubernetes system using the following command:

  helm install PUD/prometheus-elastic-adapter --name my-release

• Install Elasticsearch and Kibana to your Kubernetes system using the following command:

  helm install PUD/elasticsearch-kibana --name my-release

1.4.3.7. Configuration options

The following table lists the configurable parameters of the Prometheus chart and their default values.

Parameter	Description	Default
alertmanager.enabled	If true, create alertmanager	true
alertmanager.name	alertmanager container name	alertmanager
alertmanager.useClusterRole	Use a ClusterRole (and ClusterRoleBinding). If set to false - we define a Role and RoleBinding in the defined namespaces ONLY. This makes alertmanager work - for users who do not have ClusterAdmin privs, but wants alertmanager to operate on their own namespaces, instead of clusterwide.	alertmanager
alertmanager.useExistingRole	Set to a rolename to use existing role - skipping role creating - but still doing serviceaccount and rolebinding to the rolename set here.	alertmanager
alertmanager.image.repository	alertmanager container image repository	prom/alertmanager
alertmanager.image.tag	alertmanager container image tag	v0.21.0
alertmanager.image.pullPolicy	alertmanager container image pull policy	IfNotPresent
alertmanager.prefixURL	The prefix slug at which the server can be accessed	``
alertmanager.baseURL	The external url at which the server can be accessed	"http://localhost:9093"
alertmanager.extraArgs	Additional alertmanager container arguments	{}
alertmanager.extraSecretMounts	Additional alertmanager Secret mounts	[]
alertmanager.configMapOverrideName	Prometheus alertmanager ConfigMap override where full-name is {{.Release.Name}}-{{.Values.alertmanager.configMapOverrideName}} and setting this value will prevent the default alertmanager ConfigMap from being generated	""
alertmanager.configFromSecret	The name of a secret in the same kubernetes namespace which contains the Alertmanager config, setting this value will prevent the default alertmanager ConfigMap from being generated	""
alertmanager.configFileName	The configuration file name to be loaded to alertmanager. Must match the key within configuration loaded from ConfigMap/Secret.	alertmanager.yml
alertmanager.ingress.enabled	If true, alertmanager Ingress will be created	false
alertmanager.ingress.annotations	alertmanager Ingress annotations	{}
alertmanager.ingress.extraLabels	alertmanager Ingress additional labels	{}
alertmanager.ingress.hosts	alertmanager Ingress hostnamesv	[]
alertmanager.ingress.extraPaths	Ingress extra paths to prepend to every alertmanager host configuration. Useful when configuring custom actions with AWS ALB Ingress Controller	[]
alertmanager.ingress.tls	alertmanager Ingress TLS configuration (YAML)	[]
alertmanager.nodeSelector	node labels for alertmanager pod assignment	{}
alertmanager.tolerations	node taints to tolerate (requires Kubernetes >=1.6)	[]
alertmanager.affinity	pod affinity	{}
alertmanager.podDisruptionBudget.enabled	If true, create a PodDisruptionBudget	false
alertmanager.podDisruptionBudget.maxUnavailable	Maximum unavailable instances in PDB	1
alertmanager.schedulerName	alertmanager alternate scheduler name	nil
alertmanager.persistentVolume.enabled	If true, alertmanager will create a Persistent Volume Claim	true
alertmanager.persistentVolume.accessModes	alertmanager data Persistent Volume access modes	[ReadWriteOnce]
alertmanager.persistentVolume.annotations	Annotations for alertmanager Persistent Volume Claim	{}
alertmanager.persistentVolume.existingClaim	alertmanager data Persistent Volume existing claim name	""
alertmanager.persistentVolume.mountPath	alertmanager data Persistent Volume mount root path	/data
alertmanager.persistentVolume.size	alertmanager data Persistent Volume size	2Gi
alertmanager.persistentVolume.storageClass	alertmanager data Persistent Volume Storage Class	unset
alertmanager.persistentVolume.volumeBindingMode	alertmanager data Persistent Volume Binding Mode	unset
alertmanager.persistentVolume.subPath	Subdirectory of alertmanager data Persistent Volume to mount	""
alertmanager.podAnnotations	annotations to be added to alertmanager pods	{}
alertmanager.podLabels	labels to be added to Prometheus AlertManager pods	{}
alertmanager.podSecurityPolicy.annotations	Specify pod annotations in the pod security policy	{}
alertmanager.replicaCount	desired number of alertmanager pods	1
alertmanager.statefulSet.enabled	If true, use a statefulset instead of a deployment for pod management	false
alertmanager.statefulSet.podManagementPolicy	podManagementPolicy of alertmanager pods	OrderedReady
alertmanager.statefulSet.headless.annotations	annotations for alertmanager headless service	{}
alertmanager.statefulSet.headless.labels	labels for alertmanager headless service	{}
alertmanager.statefulSet.headless.enableMeshPeer	If true, enable the mesh peer endpoint for the headless service	false
alertmanager.statefulSet.headless.servicePort	alertmanager headless service port	80
alertmanager.priorityClassName	alertmanager priorityClassName	nil
alertmanager.resources	alertmanager pod resource requests & limits	{}
alertmanager.securityContext	Custom security context for Alert Manager containers	{}
alertmanager.service.annotations	annotations for alertmanager service	{}
alertmanager.service.clusterIP	internal alertmanager cluster service IP	""
alertmanager.service.externalIPs	alertmanager service external IP addresses	[]
alertmanager.service.loadBalancerIP	IP address to assign to load balancer (if supported)	""
alertmanager.service.loadBalancerSourceRanges	list of IP CIDRs allowed access to load balancer (if supported)	[]
alertmanager.service.servicePort	alertmanager service port	80
alertmanager.service.sessionAffinity	Session Affinity for alertmanager service, can be None or ClientIP	None
alertmanager.service.type	type of alertmanager service to create	ClusterIP
alertmanager.strategy	Deployment strategy	{ "type": "RollingUpdate" }
alertmanagerFiles.alertmanager.yml	Prometheus alertmanager configuration	example configuration
configmapReload.prometheus.enabled	If false, the configmap-reload container for Prometheus will not be deployed	true
configmapReload.prometheus.name	configmap-reload container name	configmap-reload
configmapReload.prometheus.image.repository	configmap-reload container image repository	jimmidyson/configmap-reload
configmapReload.prometheus.image.tag	configmap-reload container image tag	v0.4.0
configmapReload.prometheus.image.pullPolicy	configmap-reload container image pull policy	IfNotPresent
configmapReload.prometheus.extraArgs	Additional configmap-reload container arguments	{}
configmapReload.prometheus.extraVolumeDirs	Additional configmap-reload volume directories	{}
configmapReload.prometheus.extraConfigmapMounts	Additional configmap-reload configMap mounts	[]
configmapReload.prometheus.resources	configmap-reload pod resource requests & limits	{}
configmapReload.alertmanager.enabled	If false, the configmap-reload container for AlertManager will not be deployed	true
configmapReload.alertmanager.name	configmap-reload container name	configmap-reload
configmapReload.alertmanager.image.repository	configmap-reload container image repository	jimmidyson/configmap-reload
configmapReload.alertmanager.image.repository	configmap-reload container image repository	jimmidyson/configmap-reload
configmapReload.alertmanager.image.tag	configmap-reload container image tag	v0.4.0
configmapReload.alertmanager.image.pullPolicy	configmap-reload container image pull policy	IfNotPresent
configmapReload.alertmanager.extraArgs	Additional configmap-reload container arguments	{}
configmapReload.alertmanager.extraVolumeDirs	Additional configmap-reload volume directories	{}
configmapReload.alertmanager.extraConfigmapMounts	Additional configmap-reload configMap mounts	[]
configmapReload.alertmanager.resources	configmap-reload pod resource requests & limits	{}
initChownData.enabled	If false, don’t reset data ownership at startup	true
initChownData.name	init-chown-data container name	init-chown-data
initChownData.image.repository	init-chown-data container image repository	busybox
initChownData.image.tag	init-chown-data container image tag	latest
initChownData.image.pullPolicy	init-chown-data container image pull policy	IfNotPresent
initChownData.resources	init-chown-data pod resource requests & limits	{}
kubeStateMetrics.enabled	If true, create kube-state-metrics sub-chart	true
kube-state-metrics	kube-state-metrics configuration options	Same as sub-chart's
rbac.create	If true, create & use RBAC resources	true
server.enabled	If false, Prometheus server will not be created	true
server.name	Prometheus server container name	server
server.image.repository	Prometheus server container image repository	prom/prometheus
server.image.tag	Prometheus server container image tag	v2.20.1
server.image.pullPolicy	Prometheus server container image pull policy	IfNotPresent
server.configPath	Path to a prometheus server config file on the container FS	/etc/config/prometheus.yml
server.global.scrape_interval	How frequently to scrape targets by default	1m
server.global.scrape_timeout	How long until a scrape request times out	10s
server.global.evaluation_interval	How frequently to evaluate rules	1m
server.remoteWrite	The remote write feature of Prometheus allow transparently sending samples.	[]
server.remoteRead	The remote read feature of Prometheus allow transparently receiving samples.	[]
server.extraArgs	Additional Prometheus server container arguments	{}
server.extraFlags	Additional Prometheus server container flags	["web.enable-lifecycle"]
server.extraInitContainers	Init containers to launch alongside the server	[]
server.prefixURL	The prefix slug at which the server can be accessed	``
server.baseURL	The external url at which the server can be accessed	``
server.env	Prometheus server environment variables	[]
server.extraHostPathMounts	Additional Prometheus server hostPath mounts	[]
server.extraConfigmapMounts	Additional Prometheus server configMap mounts	[]
server.extraSecretMounts	Additional Prometheus server Secret mounts	[]
server.extraVolumeMounts	Additional Prometheus server Volume mounts	[]
server.extraVolumes	Additional Prometheus server Volumes	[]
server.configMapOverrideName	Prometheus server ConfigMap override where full-name is {{.Release.Name}}-{{.Values.server.configMapOverrideName}} and setting this value will prevent the default server ConfigMap from being generated	""
server.ingress.enabled	If true, Prometheus server Ingress will be created	false
server.ingress.annotations	Prometheus server Ingress annotations	[]
server.ingress.extraLabels	Prometheus server Ingress additional labels	{}
server.ingress.hosts	Prometheus server Ingress hostnames	[]
server.ingress.extraPaths	Ingress extra paths to prepend to every Prometheus server host configuration. Useful when configuring custom actions with AWS ALB Ingress Controller	[]
server.ingress.tls	Prometheus server Ingress TLS configuration (YAML)	[]
server.nodeSelector	node labels for Prometheus server pod assignment	{}
server.tolerations	node taints to tolerate (requires Kubernetes >=1.6)	[]
server.affinity	pod affinity	{}
server.podDisruptionBudget.enabled	If true, create a PodDisruptionBudget	false
server.podDisruptionBudget.maxUnavailable	Maximum unavailable instances in PDB	1
server.priorityClassName	Prometheus server priorityClassName	nil
server.enableServiceLinks	Set service environment variables in Prometheus server pods	true
server.schedulerName	Prometheus server alternate scheduler name	nil
server.persistentVolume.enabled	If true, Prometheus server will create a Persistent Volume Claim	true
server.persistentVolume.accessModes	Prometheus server data Persistent Volume access modes	[ReadWriteOnce]
server.persistentVolume.annotations	Prometheus server data Persistent Volume annotations	{}
server.persistentVolume.existingClaim	Prometheus server data Persistent Volume existing claim name	""
server.persistentVolume.mountPath	Prometheus server data Persistent Volume mount root path	/data
server.persistentVolume.size	Prometheus server data Persistent Volume size	8Gi
server.persistentVolume.storageClass	Prometheus server data Persistent Volume Storage Class	unset
server.persistentVolume.volumeBindingMode	Prometheus server data Persistent Volume Binding Mode	unset
server.persistentVolume.subPath	Subdirectory of Prometheus server data Persistent Volume to mount	""
server.emptyDir.sizeLimit	emptyDir sizeLimit if a Persistent Volume is not used	""
server.podAnnotations	annotations to be added to Prometheus server pods	{}
server.podLabels	labels to be added to Prometheus server pods	{}
server.alertmanagers	Prometheus AlertManager configuration for the Prometheus server	{}
server.deploymentAnnotations	annotations to be added to Prometheus server deployment	{}
server.podSecurityPolicy.annotations	Specify pod annotations in the pod security policy	{}
server.replicaCount	desired number of Prometheus server pods	1
server.statefulSet.enabled	If true, use a statefulset instead of a deployment for pod management	false
server.statefulSet.annotations	annotations to be added to Prometheus server stateful set	{}
server.statefulSet.labels	labels to be added to Prometheus server stateful set	{}
server.statefulSet.podManagementPolicy	podManagementPolicy of server pods	OrderedReady
server.podLabels	labels to be added to Prometheus server pods	{}
server.alertmanagers	Prometheus AlertManager configuration for the Prometheus server	{}
server.deploymentAnnotations	annotations to be added to Prometheus server deployment	{}
server.podSecurityPolicy.annotations	Specify pod annotations in the pod security policy	{}
server.replicaCount	desired number of Prometheus server pods	1
server.statefulSet.enabled	If true, use a statefulset instead of a deployment for pod management	false
server.statefulSet.annotations	annotations to be added to Prometheus server stateful set	{}
server.statefulSet.labels	labels to be added to Prometheus server stateful set	{}
server.statefulSet.podManagementPolicy	podManagementPolicy of server pods	OrderedReady
server.statefulSet.headless.annotations	annotations for Prometheus server headless service	{}
server.statefulSet.headless.labels	labels for Prometheus server headless service	{}
server.statefulSet.headless.servicePort	Prometheus server headless service port	80
server.statefulSet.headless.gRPC.enabled	If true, open a second port on the service for gRPC	false
server.statefulSet.headless.gRPC.servicePort	Prometheus service gRPC port, (ignored if server.service.gRPC.enabled is not true)	10901
server.statefulSet.headless.gRPC.nodePort	Port to be used as gRPC nodePort in the prometheus service	0
server.readinessProbeInitialDelay	the initial delay for the Prometheus server readiness probe	30
server.readinessProbePeriodSeconds	how often (in seconds) to perform the Prometheus server readiness probe	5
server.readinessProbeTimeout	the timeout for the Prometheus server readiness probe	30
server.readinessProbeFailureThreshold	the failure threshold for the Prometheus server readiness probe	3
server.readinessProbeSuccessThreshold	the success threshold for the Prometheus server readiness probe	1
server.livenessProbeInitialDelay	the initial delay for the Prometheus server liveness probe	30
server.livenessProbePeriodSeconds	how often (in seconds) to perform the Prometheus server liveness probe	15
server.livenessProbeTimeout	the timeout for the Prometheus server liveness probe	30
server.livenessProbeFailureThreshold	the failure threshold for the Prometheus server liveness probe	3
server.livenessProbeSuccessThreshold	the success threshold for the Prometheus server liveness probe	1
server.resources	Prometheus server resource requests and limits	{}
server.verticalAutoscaler.enabled	If true a VPA object will be created for the controller (either StatefulSet or Deployemnt, based on above configs)	false
server.securityContext	Custom security context for server containers	{}
server.service.annotations	annotations for Prometheus server service	{}
server.service.clusterIP	internal Prometheus server cluster service IP	""
server.service.externalIPs	Prometheus server service external IP addresses	[]
server.service.loadBalancerIP	IP address to assign to load balancer (if supported)	""
server.service.loadBalancerSourceRanges	list of IP CIDRs allowed access to load balancer (if supported)	[]
server.service.nodePort	Port to be used as the service NodePort (ignored if server.service.type is not NodePort)	0
server.service.servicePort	Prometheus server service port	80
server.service.sessionAffinity	Session Affinity for server service, can be None or ClientIP	None
server.service.type	type of Prometheus server service to create	ClusterIP
server.service.gRPC.enabled	If true, open a second port on the service for gRPC	false
server.service.gRPC.servicePort	Prometheus service gRPC port, (ignored if server.service.gRPC.enabled is not true)	10901
server.service.gRPC.nodePort	Port to be used as gRPC nodePort in the prometheus service	0
server.service.statefulsetReplica.enabled	If true, send the traffic from the service to only one replica of the replicaset	false
server.service.statefulsetReplica.replica	Which replica to send the traffice to	0
server.hostAliases	/etc/hosts-entries in container(s)	[]
server.sidecarContainers	array of snippets with your sidecar containers for prometheus server	""
server.strategy	Deployment strategy	{ "type": "RollingUpdate" }
serviceAccounts.alertmanager.create	If true, create the alertmanager service account	true
serviceAccounts.alertmanager.name	name of the alertmanager service account to use or create	{{ prometheus.alertmanager.fullname }}
serviceAccounts.alertmanager.annotations	annotations for the alertmanager service account	{}
serviceAccounts.server.create	If true, create the server service account	true
serviceAccounts.server.name	name of the server service account to use or create	{{ prometheus.server.fullname }}
serviceAccounts.server.annotations	annotations for the server service account	{}
server.terminationGracePeriodSeconds	Prometheus server Pod termination grace period	300
server.retention	(optional) Prometheus data retention	"15d"
serverFiles.alerting_rules.yml	Prometheus server alerts configuration	{}
serverFiles.recording_rules.yml	Prometheus server rules configuration	{}
serverFiles.prometheus.yml	Prometheus server scrape configuration	example configuration
extraScrapeConfigs	Prometheus server additional scrape configuration	""
alertRelabelConfigs	Prometheus server alert relabeling configs for H/A prometheus	""
networkPolicy.enabled	Enable NetworkPolicy	false
forceNamespace	Force resources to be namespaced	null

Specify each parameter using the --set key=value[,key=value] argument to helm install. For example:

helm install PUD/prometheus --name my-release --set server.terminationGracePeriodSeconds=360

Alternatively, a YAML file that specifies the values for the above parameters can be provided while installing the chart. For example:

helm install PUD/prometheus --name my-release -f values.yaml

The following table lists the configurable parameters of the Prometheus-elasticsearch-adapter chart and their default values.

Env Variables	Description	Default
ES_URL	Elasticsearch URL	http://localhost:9200
ES_USER	Elasticsearch User
ES_PASSWORD	Elasticsearch User Password
ES_WORKERS	Number of batch workers	1
ES_BATCH_MAX_AGE	Max period in seconds between bulk Elasticsearch insert operations	10
ES_BATCH_MAX_DOCS	Max items for bulk Elasticsearch insert operation	1000
ES_BATCH_MAX_SIZE	Max size in bytes for bulk Elasticsearch insert operation	4096
ES_ALIAS	Elasticsearch alias pointing to active write index	prom-metrics
ES_INDEX_DAILY	Create daily indexes and disable index rollover	false
ES_INDEX_SHARDS	Number of Elasticsearch shards to create per index	5
ES_INDEX_REPLICAS	Number of Elasticsearch replicas to create per index	1
ES_INDEX_MAX_AGE	Max age of Elasticsearch index before rollover	7d
ES_INDEX_MAX_DOCS	Max number of docs in Elasticsearch index before rollover	1000000
ES_INDEX_MAX_SIZE	Max size of index before rollover eg 5gb
ES_SEARCH_MAX_DOCS	Max number of docs returned for Elasticsearch search operation	1000
ES_SNIFF	Enable Elasticsearch sniffing	false
STATS	Expose Prometheus metrics endpoint	true
DEBUG	Display extra debug logs	false

1.4.3.8. Developer guide

Prometheus Exporter

Prometheus follows an HTTP pull model: It scrapes Prometheus metrics from endpoints routinely. Typically the abstraction layer between the application and Prometheus is an exporter, which takes application-formatted metrics and converts them to Prometheus metrics for consumption. Because Prometheus is an HTTP pull model, the exporter typically provides an endpoint where the Prometheus metrics can be scraped.

The relationship between Prometheus, the exporter, and the application in a Kubernetes environment can be visualized like this:

There are a number of exporters that are maintained as part of the official Prometheus GitHub

You might need to write your own exporter if:

• You’re using 3rd party software that doesn’t have an existing exporter already.

• You want to generate Prometheus metrics from software that you have written.

If you decide that you need to write your exporter, there are a handful of available languages and client libraries that you can use: Python, Go, Java, and others.

Please refer to Prometheus’ documentation to get started.

1.4.3.9. Version control and release

Prometheus v2.31.1

Prometheus-es-adapter v3.3

ElasticSearch v6.4.2

Kibana v6.4.2

1.4.3.10. License

Apache License 2.0

1.4.3.11. Notice(dependencies)

Will be determined after the release of the enabler.
