2.4.1. Logging and auditing enabler

2.4.1.1. Introduction 

This enabler logs critical actions that happen during the data exchange between ASSIST-IoT stakeholders.

This enabler has reached a TRL of 5 during the execution of the ASSIST-IoT project.

This enabler allows transparency, auditing, non-repudiation and accountability of actions during the data exchange. It also logs resource requests and identified security events to help to provide digital evidence and resolve conflicts between stakeholders, when applicable. If there is a requirement of filtering prior to logging, the DLT API is the component responisble for this action.

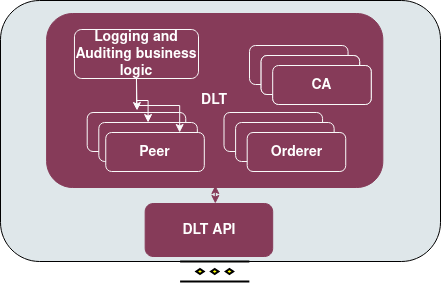

2.4.1.3. Place in architecture 

The logging and auditing enabler is part of the vertical plane DLT enablers.

2.4.1.4. User guide 

The enabler has the following API endpoints.

Method	Endpoint	Description	Payload (if needed)	Response format
POST	/api/logging/insert	Insert an event (log) into the blockchain	Described below	Transaction key
POST	/api/logging/getbyid	Get an event (log) by its transaction id	Described below	Requsested transasction
GET	/api/logging/gets	Get all events (logs) stored in the blockchain	No payload	List of stored transactions
POST	/api/logging/inserts	Create logs for location with information	Described below	Transaction key
GET	/api/logging/getlist	Get list of logs involving location	No payload	List of stored transactions
POST	/api/logging/getid	Get log by specific id (location)	Described below	Requsested transasction

For the post request the payload is:

{
  "device_id":"String",
  "value":"String",
  "timestamp":"String",
  "partition":"String",
  "offset":"String",
  "warning":"String"
}

For the getbyid and getid requests the payload is (where the UUID is the transaction id):

{
"UUID":"String"
}

For the getbyid request the payload is:

{
  "id":"String",
  "tag_id":"String",
  "lat":"String",
  "lon":"String",
}

2.4.1.5. Prerequisites 

Kubernetes cluster, Helm, Docker

2.4.1.6. Installation 

Important notice

You will have to use the nodeSelector in order to deploy all DLT components in a single node, so in values.yaml file:

# Deploy all the components in the same node. Replace k8s-node-02 with your node name.
enablerNodeSelector:
  kubernetes.io/hostname: k8s-node-02

For quick installation use the name logging (recommended)

cd logging_auditing
helm install logging .

In case you want to use another name:

cd logging_auditing
./scripts/packageCC.sh

This will ask you for a $releaseName. Use the same $releaseName on you helm install command. Each time you want to use another name, you will have to run the packageCC.sh script and do it while in the logging_auditing folder.

2.4.1.7. Configuration options 

The enabler is prepared to run in a K8s environment. The creation is prepared to be autonomous in such a working environment. The service consumer will be required to communicate with the server using the described Rest interface. In general there are several environment variables that can be configured, which is not recommended. The main configurable variable is the dltapi’s nodePort which is preset to 31999.

2.4.1.8. Developer guide 

Check the installation

You need to follow the logs of clipeer0org1. Get the pods and copy the name of the pod.

kubectl get po
kubectl logs -f $clipeer0org1_pod_name

When it is over you should be able to see in all chaincodes status 200

INFO [chaincodeCmd] chaincodeInvokeOrQuery -> Chaincode invoke successful. result: status:200

In case you want to clean the pvc

Important note, you need to deploy the pod inside the same node, so in dltinspectionpod.yaml you need to add the node name:

nodeSelector:
  kubernetes.io/hostname: name_of_the_node

Inside the logging_auditing fodler:

kubectl apply -f dltinspectionpod.yaml
kubectl exec -it inspect  -- sh

Inside the container:

rm -r data
exit

It returns resource is busy, but it gets cleaned. Back to the logging_auditing fodler:

kubectl delete pod inspect

The software included is:

Hyperledger Fabric (https://github.com/hyperledger/fabric) Apache 2.0 License
Go programming language (https://github.com/golang/go) BSD 3-Clause “New” or “Revised” License
Express JS (https://github.com/expressjs/express) MIT License
