1.2.7. WAN-Acceleration enabler

1.2.7.1. Introduction 

The WAN acceleration enabler will incorporate features that will improve the connections among the clusters and/or sites managed by ASSIST-IoT, and towards the Internet. It will work jointly with the SD-WAN enabler to establish scalable, private tunnels and introduce optimisation features such as traffic prioritisation.

1.2.7.2. Features 

This enabler will be in charge of implementing features to support multiple WAN links, firewalling, tunnelling setups and traffic control, including traffic shaping. Depending on its configuration (via the SD-WAN enabler), it can act as:

An SD-WAN Edge component, present in each K8s cluster, with a dedicated K8s controller and a Containerised Network function (CNF) through which traffic goes through it. The CNF will embed functions to setup aspects such related to IPSec, firewalling, DNS, DHCP and WAN link management, whereas a Custom Definition Resource (CRD) controller contains all the sub-controllers to create, query and configure these features.
A SD-WAN hub, which will act as a middleware among clusters and/or between them and the Internet, enabling the introduction of additional CNFs related to security, filtering, traffic shaping, etc. Once the basic features are implemented, the incorporation of additional ones (as CNFs) will be evaluated.

1.2.7.3. Place in architecture 

The WAN Acceleration enabler is located in the Smart Network and Control plane of the ASSIST-IoT architecture. In particular, it belongs to the building block related to VNFs, specifically (i) for provisioning private networks over public ones, jointly with the SD-WAN enabler, and (ii) for supporting VNFs chaining (containerised, thus CNFs).

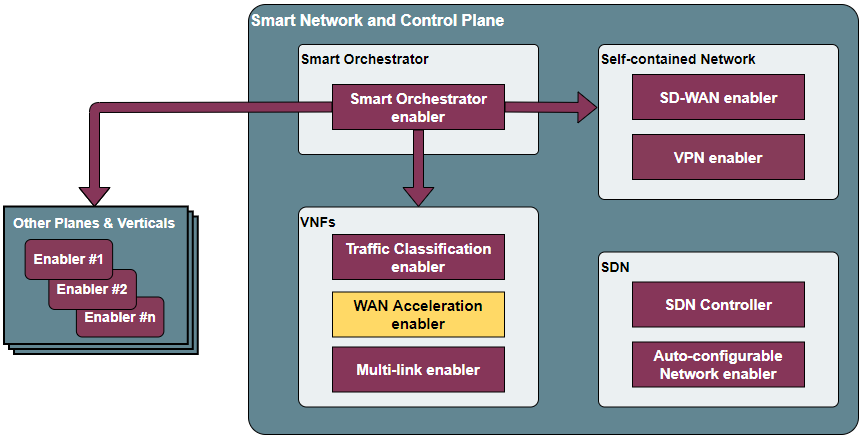

Place of the WAN Acceleration enabler within the Smart Network and Control Plance architecture

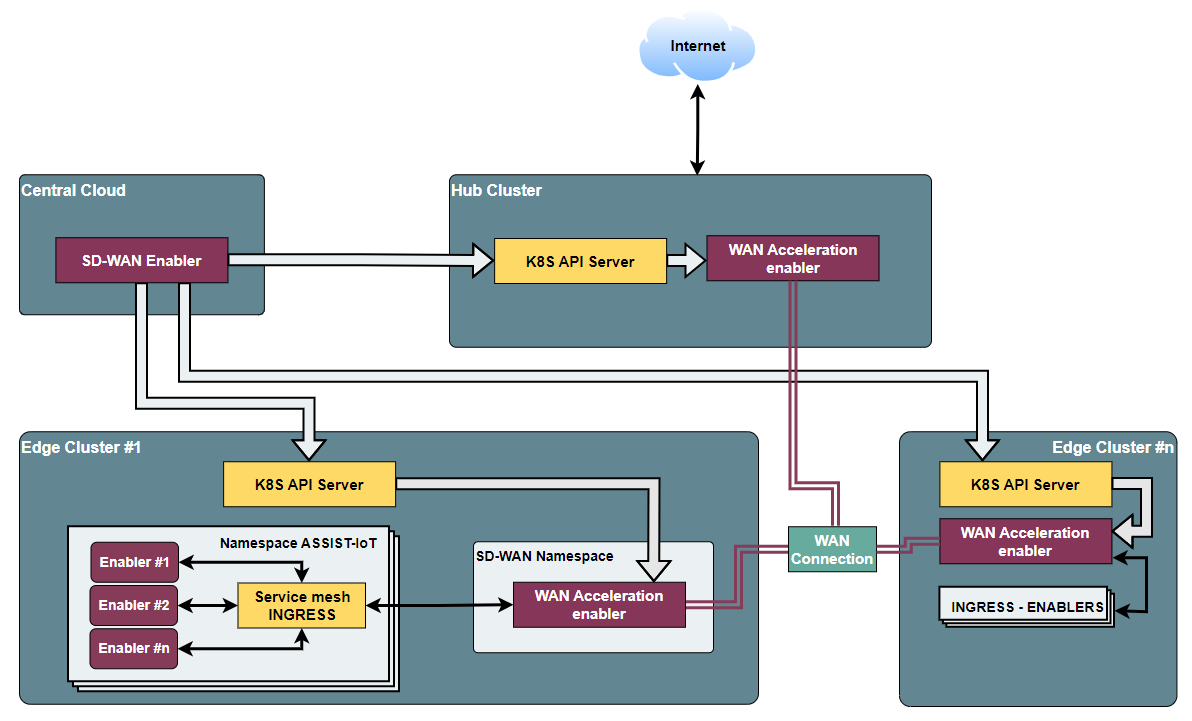

The following diagram aims at describing the global operation of the SD-WAN architecture, including the SD-WAN enabler and instances of the WAN Acceleration enabler (each of them composed by an SD-WAN custom k8s controller and an SD-WAN CNF).

This overall SD-WAN architecture is guided by the following logic:

With the SD-WAN enabler, a user can define overlays, which are abstract groups of K8s clusters whose connections will be managed by the SD-WAN enabler.
Through this enabler, the user can define IPSec policies and IP ranges to later on establish tunnels among those clusters, which should have previously deployed an instance of the WAN acceleration enabler.
These clusters can act as edges or hubs. Hubs are particular instances of the WAN acceleration enabler that allow chaining network functions that will process the traffic among clusters and before navigating from/towards the Internet.
Besides, interacting with the K8s API (not directly with a WAN Acceleration’s CNF), a user can define firewall, wan and traffic optimisation policies in the edge clusters.

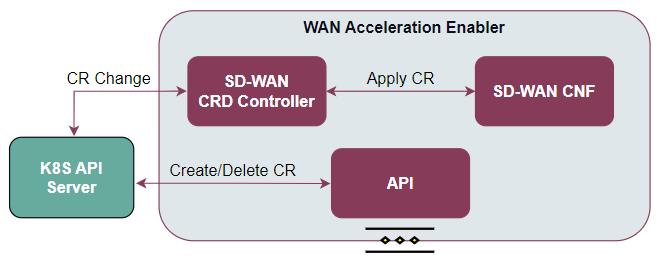

As aforementioned, the enabler is composed of three main elements, as one can see in the figure below:

CRD Controller: Component that will receive API calls from the K8s API of the cluster to configure the CNF component.
SD-WAN CNF: The CNF will embed functions to setup aspects such related to IPSec, firewalling, DNS, DHCP and WAN link management, exposing an API to be controlled/queried.
API: The API component contains an easy-to-use interface to create, list or delete all configuration related to internal management, such as firewall rules or mwan3 policies. This component interacts directly with the K8S API server rather than with other components.

1.2.7.4. User guide 

In the following table are presented the endpoint ready to use:

1.2.7.4.1. Firewall

Define internal firewall configuration. This functionality uses groups to manage general behavior and can define rules, access permissions and source, forward or destination NAT rules.

Zones

Method	Endpoint	Description	Payload (if need)
POST	api/v1/firewall/zones	Zone Registration	{“metadata”: {“name”: “ovn-network”},”spec”: {“network”: [“ovn-network”]}}
GET	api/v1/firewall/zones	Get all firewall zones
GET	api/v1/firewall/zones/{zone-name}	Get firewall zone by name
DELETE	api/v1/firewall/zones/{zone-name}	Delete firewall zone

SNAT

Method	Endpoint	Description	Payload (if need)
POST	api/v1/firewall/snats	SNAT Registration	{“metadata”: {“name”: “firewallsnat”},”spec”: {“src”: “ovn-network”}}
GET	api/v1/firewall/snats	Get all firewall snats
GET	api/v1/firewall/snats/{snat-name}	Get firewall snat by name
DELETE	api/v1/firewall/snats/{snat-name}	Delete firewall snat

DNAT

Method	Endpoint	Description	Payload (if need)
POST	api/v1/firewall/dnats	DNAT Registration	{“metadata”: {“name”: “firewalldnat”},”spec”: {“src”: “pnetwork”}}
GET	api/v1/firewall/dnats	Get all firewall dnats
GET	api/v1/firewall/dnats/{dnat-name}	Get firewall dnat by name
DELETE	api/v1/firewall/dnats/{dnat-name}	Delete firewall dnat

Forwarding

Method	Endpoint	Description	Payload (if need)
POST	api/v1/firewall/forwardings	Forwarding Registration	{“metadata”: {“name”: “firewallforwarding”},”spec”: {“src”: “ovn-network”}}
GET	api/v1/firewall/forwardings	Get all firewall forwardings
GET	api/v1/firewall/forwardings/{forwarding-name}	Get firewall forwarding by name
DELETE	api/v1/firewall/forwardings/{forwarding-name}	Delete firewall forwarding

Rules

Method	Endpoint	Description	Payload (if need)
POST	api/v1/firewall/rules	Firewall Rule Registration	{“metadata”: {“name”: “firewallrule”},”spec”: {“src”: “ovn-network”}}
GET	api/v1/firewall/rules	Get all firewall rules
GET	api/v1/firewall/rules/{rule-name}	Get firewall rule by name
DELETE	api/v1/firewall/ruless/{rule-name}	Delete firewall rule

1.2.7.4.2. MWAN3

Define internal mwan3 configuration. Define policies and rules to manage balancing and failover for each edge cluster.

Policies

Method	Endpoint	Description	Payload (if need)
POST	api/v1/mwan3/policies	MWAN3 Policy Registration	{“metadata”: {“name”: “mwan3policy”},”spec”: {“members”}}
GET	api/v1/mwan3/policies	Get all mwan3 policies
GET	api/v1/mwan3/policies/{policy-name}	Get mwan3 policy by name
DELETE	api/v1/mwan3/policies/{policy-name}	Delete firewall policy

Rules

### Rules
Method	Endpoint	Description	Payload (if need)

POST	api/v1/mwan3/rules	MWAN3 Rule Registration	{“metadata”: {“name”: “mwan3rule”},”spec”: {“family”}}
GET	api/v1/mwan3/rules	Get all mwan3 rules
GET	api/v1/mwan3/rules/{rule-name}	Get mwan3 rule by name
DELETE	api/v1/mwan3/rules/{rule-name}	Delete firewall rule

1.2.7.5. Prerequisites 

In this case, the enabler required some CNI plugins for K8s:

Calico.
Multus daemonset.
OVN daemonset.
OVN networks.
Cert manager to manage connection between networks.

In addition, the enabler will require provisioning the kubeconfig files of the clusters to manage and information about the involved certificates.

1.2.7.6. Installation 

Prerrequisites are available to install in shell bash script named “kubernetes.sh”. Rest of installation are done implemented by k8s manifests. In future releases, the installation will be by helm charts.

Steps of installation are avaible in gitlab repository.

1.2.7.7. Configuration options 

An analysis of the configurations to be modifiable by a user is under assessment. The exposed port for accessing the API will be one of the available options.

1.2.7.8. Developer guide 

Will be determined after the release of the enabler.

1.2.7.9. Version control and release 

Version 1.0. First release.

1.2.7.10. License 

Licensed under the Apache License, Version 2.0 (the “License”); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an “AS IS” BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

1.2.7.11. Notice (dependencies)

This enabler can work in an standalone fashion to offer network-related features related mostly to firewalling. It will be fully functional if it works jointly with a SD-WAN enabler, enabling the setup of secured tunnels between clusters.
