1.2.7. WAN-Acceleration enabler

1.2.7.1. Introduction

The WAN acceleration enabler will incorporate features that will improve the connections among the clusters and/or sites managed by ASSIST-IoT, and towards the Internet. It will work jointly with the SD-WAN enabler to establish scalable, private tunnels and introduce optimisation features such as traffic prioritisation.

This enabler has reached a TRL of 5 during the execution of the ASSIST-IoT project.

1.2.7.2. Features

This enabler will be in charge of implementing features to support multiple WAN links, firewalling, tunnelling setups and traffic control, including traffic shaping. Depending on its configuration (via the SD-WAN enabler), it can act as:

  • An SD-WAN Edge component, present in each K8s cluster, with a dedicated K8s controller and a Containerised Network function (CNF) through which traffic goes through it. The CNF will embed functions to setup aspects such related to IPSec, firewalling, DNS, DHCP and WAN link management, whereas a Custom Definition Resource (CRD) controller contains all the sub-controllers to create, query and configure these features.

  • A SD-WAN hub, which will act as a middleware among clusters and/or between them and the Internet, enabling the introduction of additional CNFs related to security, filtering, traffic shaping, etc. Once the basic features are implemented, the incorporation of additional ones (as CNFs) will be evaluated.

1.2.7.3. Place in architecture

The WAN Acceleration enabler is located in the Smart Network and Control plane of the ASSIST-IoT architecture. In particular, it belongs to the building block related to VNFs, specifically (i) for provisioning private networks over public ones, jointly with the SD-WAN enabler, and (ii) for supporting VNFs chaining (containerised, thus CNFs).

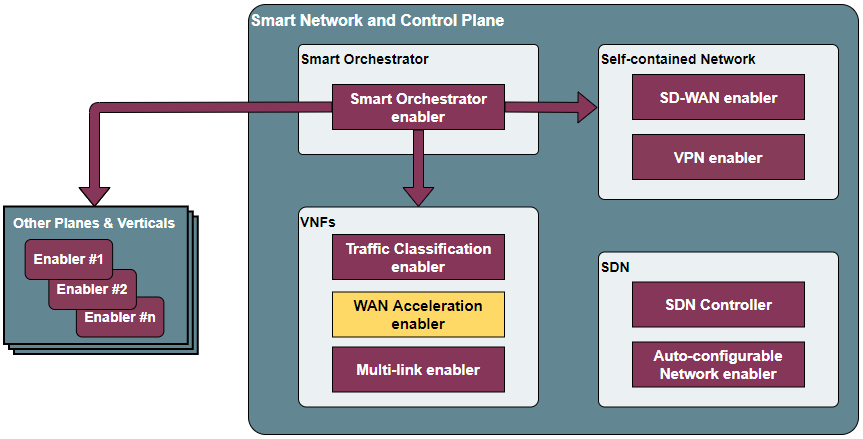

Place of the WAN Acceleration enabler within the Smart Network and Control Plance architecture

Place of the WAN Acceleration enabler within the Smart Network and Control Plance architecture

The following diagram aims at describing the global operation of the SD-WAN architecture, including the SD-WAN enabler and instances of the WAN Acceleration enabler (each of them composed by an SD-WAN custom k8s controller and an SD-WAN CNF).

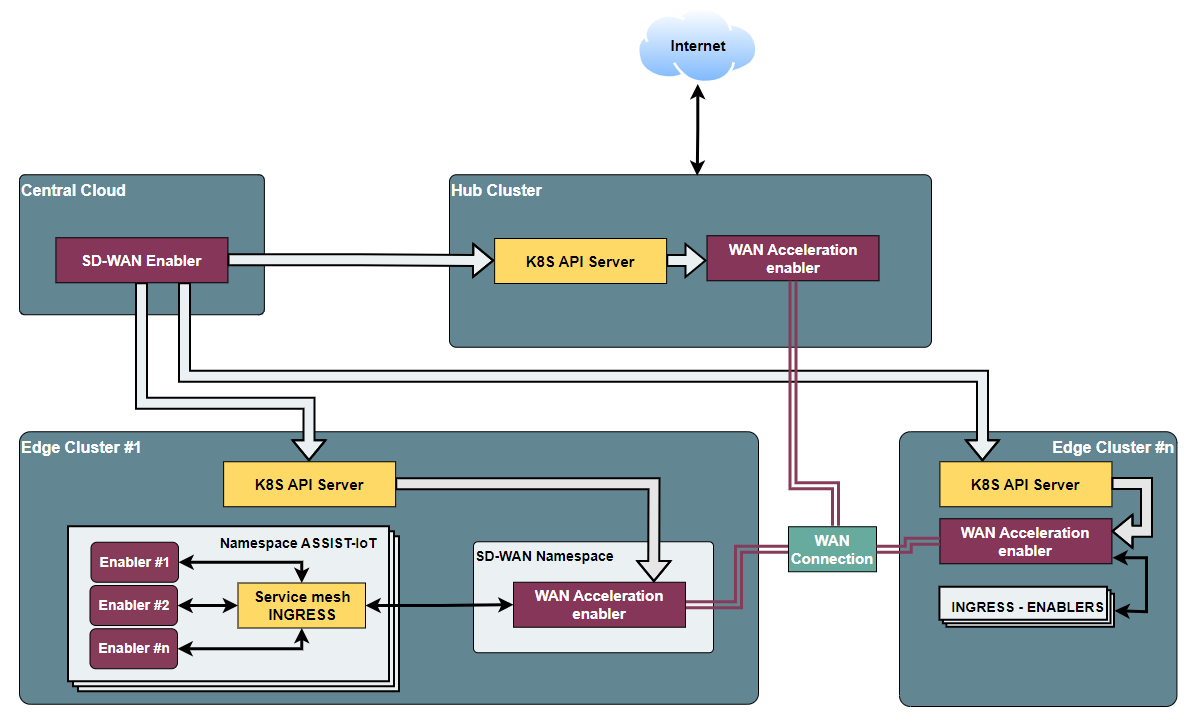

SD-WAN overall architecture

SD-WAN overall architecture

This overall SD-WAN architecture is guided by the following logic:

  1. With the SD-WAN enabler, a user can define overlays, which are abstract groups of K8s clusters whose connections will be managed by the SD-WAN enabler.

  2. Through this enabler, the user can define IPSec policies and IP ranges to later on establish tunnels among those clusters, which should have previously deployed an instance of the WAN acceleration enabler.

  3. These clusters can act as edges or hubs. Hubs are particular instances of the WAN acceleration enabler that allow chaining network functions that will process the traffic among clusters and before navigating from/towards the Internet.

  4. Besides, interacting with the K8s API (not directly with a WAN Acceleration’s CNF), a user can define firewall, wan and traffic optimisation policies in the edge clusters.

As aforementioned, the enabler is composed of three main elements, as one can see in the figure below:

  • CRD Controller: Component that will receive API calls from the K8s API of the cluster to configure the CNF component.

  • SD-WAN CNF: The CNF will embed functions to setup aspects such related to IPSec, firewalling, DNS, DHCP and WAN link management, exposing an API to be controlled/queried.

  • API: The API component contains an easy-to-use interface to create, list or delete all configuration related to internal management, such as firewall rules or mwan3 policies. This component interacts directly with the K8S API server rather than with other components.

WAN Acceleration enabler architecture

WAN Acceleration enabler architecture

1.2.7.4. User guide

In the following table are presented the endpoint ready to use:

1.2.7.4.1. Firewall

Define internal firewall configuration. This functionality uses groups to manage general behavior and can define rules, access permissions and source, forward or destination NAT rules.

Zones

Method

Endpoint

Description

Payload (if need)

POST

api/v1/firewall/zones

Zone Registration

{“metadata”: {“name”: “ovn-network”},”spec”: {“network”: [“ovn-network”]}}

GET

api/v1/firewall/zones

Get all firewall zones

GET

api/v1/firewall/zones/{zone-name}

Get firewall zone by name

DELETE

api/v1/firewall/zones/{zone-name}

Delete firewall zone

SNAT

Method

Endpoint

Description

Payload (if need)

POST

api/v1/firewall/snats

SNAT Registration

{“metadata”: {“name”: “firewallsnat”},”spec”: {“src”: “ovn-network”}}

GET

api/v1/firewall/snats

Get all firewall snats

GET

api/v1/firewall/snats/{snat-name}

Get firewall snat by name

DELETE

api/v1/firewall/snats/{snat-name}

Delete firewall snat

DNAT

Method

Endpoint

Description

Payload (if need)

POST

api/v1/firewall/dnats

DNAT Registration

{“metadata”: {“name”: “firewalldnat”},”spec”: {“src”: “pnetwork”}}

GET

api/v1/firewall/dnats

Get all firewall dnats

GET

api/v1/firewall/dnats/{dnat-name}

Get firewall dnat by name

DELETE

api/v1/firewall/dnats/{dnat-name}

Delete firewall dnat

Forwarding

Method

Endpoint

Description

Payload (if need)

POST

api/v1/firewall/forwardings

Forwarding Registration

{“metadata”: {“name”: “firewallforwarding”},”spec”: {“src”: “ovn-network”}}

GET

api/v1/firewall/forwardings

Get all firewall forwardings

GET

api/v1/firewall/forwardings/{forwarding-name}

Get firewall forwarding by name

DELETE

api/v1/firewall/forwardings/{forwarding-name}

Delete firewall forwarding

Rules

Method

Endpoint

Description

Payload (if need)

POST

api/v1/firewall/rules

Firewall Rule Registration

{“metadata”: {“name”: “firewallrule”},”spec”: {“src”: “ovn-network”}}

GET

api/v1/firewall/rules

Get all firewall rules

GET

api/v1/firewall/rules/{rule-name}

Get firewall rule by name

DELETE

api/v1/firewall/ruless/{rule-name}

Delete firewall rule

1.2.7.4.2. MWAN3

Define internal mwan3 configuration. Define policies and rules to manage balancing and failover for each edge cluster.

Policies

Method

Endpoint

Description

Payload (if need)

POST

api/v1/mwan3/policies

MWAN3 Policy Registration

{“metadata”: {“name”: “mwan3policy”},”spec”: {“members”}}

GET

api/v1/mwan3/policies

Get all mwan3 policies

GET

api/v1/mwan3/policies/{policy-name}

Get mwan3 policy by name

DELETE

api/v1/mwan3/policies/{policy-name}

Delete firewall policy

Rules

### Rules

Method

Endpoint

Description

Payload (if need)

POST

api/v1/mwan3/rules

MWAN3 Rule Registration

{“metadata”: {“name”: “mwan3rule”},”spec”: {“family”}}

GET

api/v1/mwan3/rules

Get all mwan3 rules

GET

api/v1/mwan3/rules/{rule-name}

Get mwan3 rule by name

DELETE

api/v1/mwan3/rules/{rule-name}

Delete firewall rule

1.2.7.5. Prerequisites

In this case, the enabler required some CNI plugins for K8s:

  • Calico.

  • Multus daemonset.

  • OVN daemonset.

  • OVN networks.

  • Cert manager to manage connection between networks.

In addition, the enabler will require provisioning the kubeconfig files of the clusters to manage and information about the involved certificates.

1.2.7.6. Installation

Prerrequisites are available to install in shell bash script named “kubernetes.sh”. Rest of installation are done implemented by k8s manifests. In future releases, the installation will be by helm charts.

Steps of installation are avaible in gitlab repository.

1.2.7.7. Configuration options

An analysis of the configurations to be modifiable by a user is under assessment. The exposed port for accessing the API will be one of the available options.

1.2.7.8. Developer guide

This code is expected to be executed within a Helm chart, in a Kubernetes-governed platform. It has been also tested with Docker compose and directly over Ubuntu x64 distributions, with and without GPU NVIDIA processors. In case that developers aims at using the code directly over a given Operating System, non-virtualized, the code has been tested only in Ubuntu 20.04 machines, and hence we do not grant that it will work in any other OS.

This code is open source and can be freely used by the innovation and research community. In case that commits are to be made, the mantainer team (UPV) holds the rights to accept or deny them. Best practices are encouraged in the latter case.

1.2.7.9. Version control and release

Version 1.0.0

1.2.7.10. License

This software is licensed under the Apache 2.0 license.

1.2.7.11. Notice (dependencies)

ASSIST-IoT - Architecture for Scalable, Self-*, human-centric, Intelligent, Se-cure, and Tactile next generation IoT

This project has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No 957258.

WAN-Acceleration enabler

Copyright 2020-2023 Universitat Politècnica de València
