1.2.6. SD-WAN enabler

1.2.6.1. Introduction

The objective of this enabler is to provide access between nodes from different sites based on SD-WAN technology. It will work jointly with the WAN acceleration enabler to establish scalable, private tunnels within the managed K8s clusters.

1.2.6.2. Features

This enabler will implement mechanisms to connect K8s clusters via private tunnels, facilitating (i) the deployment and chaining of virtual functions to secure connections between them and/or towards the Internet and (ii) the implementation of functions to optimise WAN traffic (via WAN Acceleration enabler), enabling the chaining of (network) functions.

Note

This enabler is stil under develoment, being subject to modifications of its scope.

1.2.6.3. Place in architecture

The SD-WAN enabler is located in the Smart Network and Control plane of the ASSIST-IoT architecture. In particular, it belongs to the building block related to self-contained networks, which are the ones used for provisioning private networks over public ones.

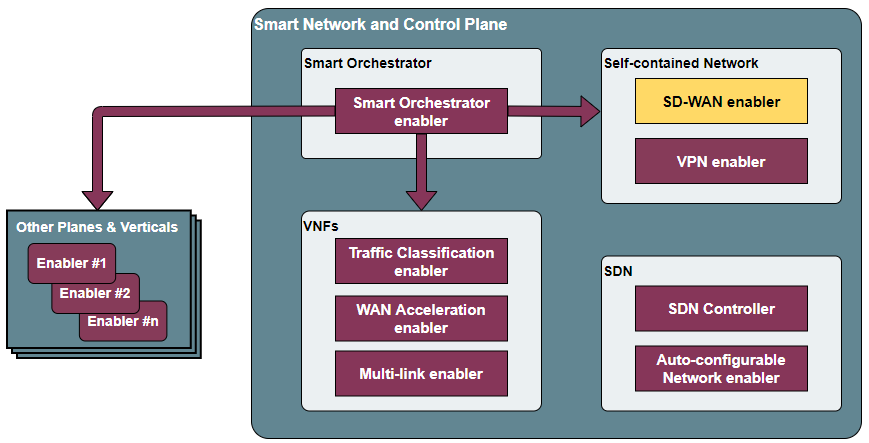

Place of the SD-WAN enabler within the Smart Network and Control Plance architecture

Place of the SD-WAN enabler within the Smart Network and Control Plance architecture

The following diagram aims at describing the global operation of the SD-WAN architecture, including the SD-WAN enabler and instances of WAN Acceleration enabler (each of them composed by an SD-WAN custom k8s controller and an SD-WAN CNF).

SD-WAN overall architecture

SD-WAN overall architecture

This overall SD-WAN architecture is guided by the following logic:

  1. With the SD-WAN enabler, a user can define overlays, which are abstract groups of K8s clusters whose connections will be managed by the SD-WAN enabler.

  2. Through this enabler, the user can define IPSec policies and IP ranges to later on establish tunnels among those clusters, which should have previously deployed an instance of the WAN acceleration enabler.

  3. These clusters can act as edges or hubs. Hubs are particular instances of the WAN acceleration enabler that allow chaining network functions that will process the traffic among clusters and before navigating from/towards the Internet.

  4. Besides, interacting with the K8s API (not directly with a WAN Acceleration’s CNF), a user can define firewall, wan and traffic optimisation policies in the edge clusters.

Particularly, the SD-WAN enabler is composed of four main elements, as one can see in the figure below:

  • SD-WAN Controller: Component in charge of managing the aspects related to SD-WAN communication, including overlays, IP provisioning, tunnels, hub registration, connection and observation, and cluster addition to be managed by it. Provides a REST API to interact with it.

  • Rsync component: Service that receives requests from the controller and dispatch K8s resources to the WAN acceleration enablers and K8s resources of the involved clusters to setup the dedicated tunnels.

  • Database: Stores key information regarding managed clusters, hubs, overlays, IP ranges, etc.

  • Etcd: Internal metadata database used to exchange configuration between the controller and rsync component.

SD-WAN enabler architecture

SD-WAN enabler architecture

1.2.6.4. User guide

1.2.6.4.1. REST API endpoints

The API has not been implemented yet, in the following table are presented the expected endpoints:

Method

Endpoint

Description

GET/POST/PUT/DELETE

/overlays

Endpoint in charge of creating, modifying, deleting and getting information regarding a set of edge clusters (and hubs) managed by the enabler.

GET/POST/PUT/DELETE

/overlays/{id}/proposal

Endpoint in charge of defining IPSec proposals that can be used for tunnels in an overlay.

GET/POST/PUT/DELETE

/overlays/{id}/hubs

Define a traffic hub in an overlay. Requires certificate and kubeconfig file to be able to manage it.

GET/POST/PUT/DELETE

/overlays/{id}/ipranges

Defines the overlay IP range used for the edge clusters.

GET/POST/PUT/DELETE

/overlays/{id}/devices

Define an edge cluster location (with SD-WAN acceleration enabler). Among other input, it required kubeconfig file and certificate information.

GET/POST/PUT/DELETE

/overlays/{id}/hubs/{id}/devices/{id}

Define a connection between a hub and an edge cluster.

1.2.6.5. Prerequisites

An analysis of the prerequisites is still under develoment. In this case, the enabler will require provisioning the kubeconfig files of the clusters to manage and information about the involved certificates. Additional CNI plugins for K8s such as Multus might be needed.

1.2.6.6. Installation

Any Helm chart, dedicated K8s manifests or Docker compose file for deploying the enabler has been developed yet, as it is still under development.

1.2.6.7. Configuration options

An analysis of the configurations to be modifiable by a user is under assessment. The exposed port for accessing the API will be one of the available options, as well as the needed configurations for having execution rights over the involved K8s API endpoints.

1.2.6.8. Developer guide

Will be determined after the release of the enabler.

1.2.6.9. Version control and release

Will be determined after the release of the enabler.

1.2.6.10. License

Will be determined after the release of the enabler.

1.2.6.11. Notice (dependencies)

Although it can be deployed standalone, this enabler does not have any sense without having WAN acceleration enablers deployed in the clusters to manage (as hubs or as edge nodes).
