1.2.7. WAN acceleration enabler

1.2.7.1. Introduction

The WAN acceleration enabler will incorporate features that will improve the connections among the clusters and/or sites managed by ASSIST-IoT, and towards the Internet. It will work jointly with the SD-WAN enabler to establish scalable, private tunnels and introduce optimisation features such as traffic prioritisation.

1.2.7.2. Features

This enabler will be in charge of implementing features to support multiple WAN links, firewalling, tunnelling setups and traffic control, including traffic shaping. Depending on its configuration (via the SD-WAN enabler), it can act as:

• An SD-WAN Edge component, present in each K8s cluster, with a dedicated K8s controller and a Containerised Network function (CNF) through which traffic goes through it. The CNF will embed functions to setup aspects such related to IPSec, firewalling, DNS, DHCP and WAN link management, whereas a Custom Definition Resource (CRD) controller contains all the sub-controllers to create, query and configure these features.

• A SD-WAN hub, which will act as a middleware among clusters and/or between them and the Internet, enabling the introduction of additional CNFs related to security, filtering, traffic shaping, etc. Once the basic features are implemented, the incorporation of additional ones (as CNFs) will be evaluated.

Note

This enabler is stil under develoment, being subject to modifications of its scope.

1.2.7.3. Place in architecture

The WAN Acceleration enabler is located in the Smart Network and Control plane of the ASSIST-IoT architecture. In particular, it belongs to the building block related to VNFs, specifically (i) for provisioning private networks over public ones, jointly with the SD-WAN enabler, and (ii) for supporting VNFs chaining (containerised, thus CNFs).

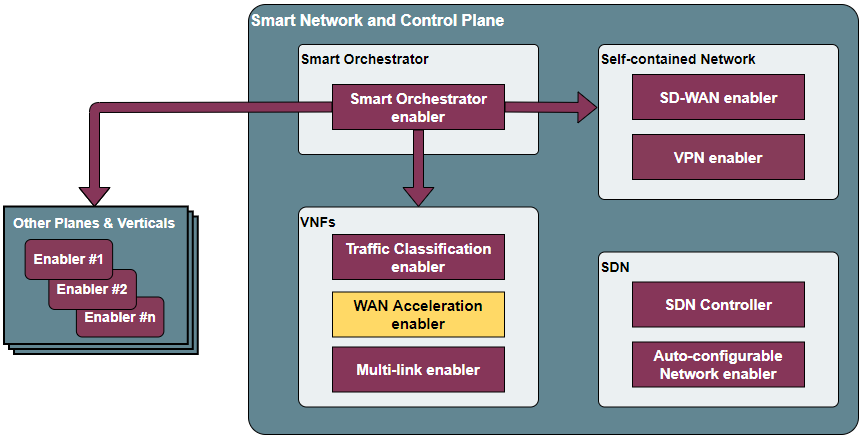

Place of the WAN Acceleration enabler within the Smart Network and Control Plance architecture

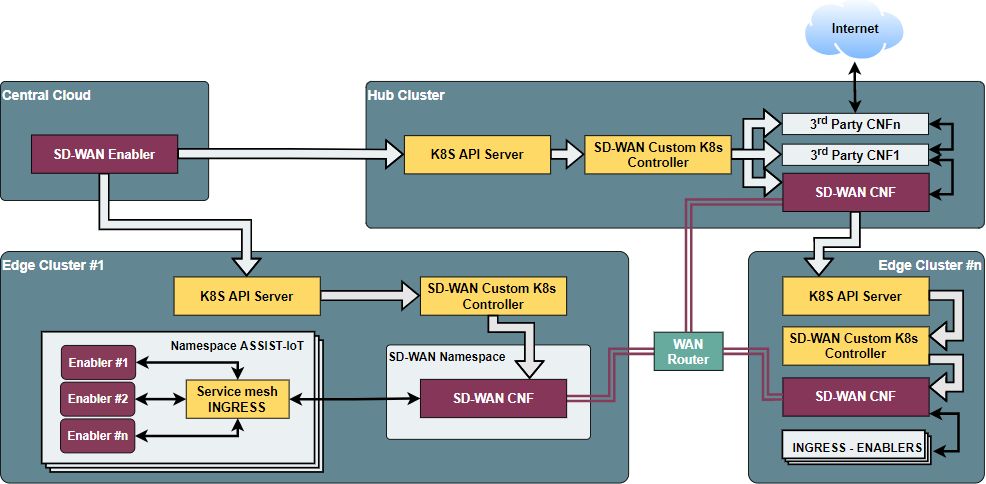

The following diagram aims at describing the global operation of the SD-WAN architecture, including the SD-WAN enabler and instances of the WAN Acceleration enabler (each of them composed by an SD-WAN custom k8s controller and an SD-WAN CNF).

SD-WAN overall architecture

This overall SD-WAN architecture is guided by the following logic:

1. With the SD-WAN enabler, a user can define overlays, which are abstract groups of K8s clusters whose connections will be managed by the SD-WAN enabler.

2. Through this enabler, the user can define IPSec policies and IP ranges to later on establish tunnels among those clusters, which should have previously deployed an instance of the WAN acceleration enabler.

3. These clusters can act as edges or hubs. Hubs are particular instances of the WAN acceleration enabler that allow chaining network functions that will process the traffic among clusters and before navigating from/towards the Internet.

4. Besides, interacting with the K8s API (not directly with a WAN Acceleration’s CNF), a user can define firewall, wan and traffic optimisation policies in the edge clusters.

As aforementioned, the enabler is composed of two main elements, as one can see in the figure below:

• CRD Controller: Component that will receive API calls from the K8s API of the cluster to configure the CNF component.

• SD-WAN CNF: The CNF will embed functions to setup aspects such related to IPSec, firewalling, DNS, DHCP and WAN link management, exposing an API to be controlled/queried.

WAN Acceleration enabler architecture

1.2.7.4. User guide

1.2.7.4.1. REST API endpoints

The API has not been implemented yet, in the following table are presented the expected endpoints:

Method	Endpoint	Description
GET/PUT	/services/{id}	To list all the services supported by the CNF, and execute an operation for one (e.g., mwan3, firewall, IPsec-related).
GET/PUT	/interfaces/{id}	To list all the available interfaces and their specific information, allowing enabling or disabling them.
GET/POST/PUT/DELETE	/mwan3/policies/{id}	Policies define how traffic will be routed through the WAN managed interfaces.
GET/POST/PUT/DELETE	/mwan3/rules/{id}	Rules apply policies over specific source/destiny IP addresses, ports, IP type, protocol, etc.
GET/POST/PUT/DELETE	/firewall/zones/{id}	Groups one or many interfaces to be source or destination for forwardings, rules and redirects.
GET/POST/PUT/DELETE	/firewall/redirects/{id}	To define NAT rules.
GET/POST/PUT/DELETE	/firewall/rules/{id}	To specify accept, drop and reject rules to restrict access to specific ports or hosts.
GET/POST/PUT/DELETE	/firewall/forwardings/{id}	To control traffic between zones.

1.2.7.5. Prerequisites

An analysis of the prerequisites is still under develoment.

1.2.7.6. Installation

Any Helm chart, dedicated K8s manifests or Docker compose file for deploying the enabler has been developed yet, as it is still under development.

1.2.7.7. Configuration options

An analysis of the configurations to be modifiable by a user is under assessment. The exposed port for accessing the API will be one of the available options.

1.2.7.8. Developer guide

Will be determined after the release of the enabler.

1.2.7.9. Version control and release

Will be determined after the release of the enabler.

1.2.7.10. License

Will be determined after the release of the enabler..

1.2.7.11. Notice (dependencies)

This enabler can work in an standalone fashion to offer network-related features related mostly to firewalling. It will be fully functional if it works jointly with a SD-WAN enabler, enabling the setup of secured tunnels between clusters.
